Shredder PreciCut 1-Shaft
The PreciCut shredders are characterised by the polygonal shaft with positive locking and the new cutting tool, which allows you to change from one cutting geometry to another in a matter of minutes.
Adjustable discharge rate and unique pellet sizing
The adjustable discharge rate with unique pellet sizing, unrivalled minimum fines and oversize fractions, unparalleled
cutting geometry, extremely sensitive pressure and load control, self-cooling polygonal shaft, the recut, the screen basket geometry and many other details form the basis of this outstanding and
leading size reduction technology.
Universal use
The single-shaft shredders in the PreciCut series have been on the market for more than 20 years and have proven themselves in the most difficult applications.
The same machine can be used to shred fibres, blocks, films, bales and rolls to defined pellets of 6 - 80 mm.
Trouble-free continuous operation
The PreciCut single-shaft machine with the drawer unit for controlled, load-dependent feeding of the shredding shaft with material. The
interplay between the number of revolutions of the cutter shaft, the contact pressure of the drawer and its travelling speed results in the highest possible operational reliability and
trouble-free continuous operation.
Cutting width of over 2 metres.

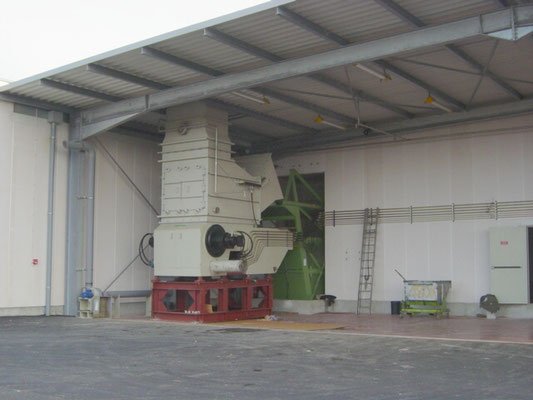

The PreciCut 830s with a cutting width of 2017 mm and a cutter shaft diameter of 660 mm and a drawer stroke of 2.6 metres is the largest
machine in the PreciCut range. Sprue blocks are shredded directly to a final granulate of 8 mm in one shredding step.
The cutting system
Cutting tool holder
GRV80-1
GRV83-1
The tool holder is suitable for holding various cutting tools. These cutting tools can be completely replaced within a few minutes. The tools / wear parts are available in tool steel, carbide and ceramic.
The advantages
- From bales, rolls, blocks, fibres and hollow bodies to the desired final pellets in a single step.
- Defined pellet sizes from 6 to 80 mm
- Trouble-free continuous operation thanks to drawer technology
- Load-dependent feeding of the material to the cutting shaft
- Minimal wear costs
- Modular design enables adaptation to customer-specific requirements.
Paper+Cellulose
Repa paper bags
Plastic foils
hollow parts
Nylon fibres
Big-Bags
Transformer coils
PP - fibres
Pulper braids
Adhesive labels
PVC foils
PET bottles
Aluminium
Aluminium
Elektronc scrap
Industrial waste
Machine:
Model:
Drive:
Material:
Material Input:
Material Output:
Throughput:
1-shaft shredder
PreciCut 724
200 KW
Packaging film
Rolls, bales
< 20mm
1,500 kg
Machine:
Model:
Drive:
Material:
Material Input:
Material Output:
Throughput:
1-shaft shredder
PreciCut 730
200 KW
Paint and varnish containers
Containers, spray cans
< 80mm
1,500 kg
Machine:
Model:
Drive:
Material:
Material Input:
Material Output:
Throughput:
1-shaft shredder
PreciCut 830S
250 KW
Household waste, pre-sorted
Granulate < 400mm
< 60mm
7,000 kg
Machine:
Model:
Drive:
Material:
Material Input:
Material Output:
Throughput:
1-shaft shredder
PreciCut 730S
200 KW
LDPE and HDPE
Bottle fraction
Bales 1 x 1 x 1.5m | Pellets ø6mm
5,000 kg/h
Machine:
Model:
Drive:
Material:
Material Input:
Material Output:
Throughput:
1-shaft shredder
PreciCut 730S
200 KW
Paper/repa bags
Bales 1 x 1 x 1.5m
Pellets ø6mm
5,000 kg/h
Machine:
Model:
Drive:
Material:
Material Input:
Material Output:
Throughput:
1-shaft shredder
PreciCut 730S
200 KW
PET bottles
Bales 1 x 1 x 1.5m
< 60mm
8,000 kg/h
Machine:
Model:
Drive:
Material:
Material Input:
Material Output:
Throughput:
1-shaft shredder
PreciCut 630S
200 KW
LOSE + BATCH
Blanks, housing
< 20mm
4,500 kg/h
Aluminium
3.5to/h <30mm
Big Bag's
1.3 to/h <40mm
Glas fibres 4.5 to/h <40mm
Extruder blocs
1.5 to/h <8mm
Aluminium bales
6.0 to/h <30mm
PET bottles
8.0 to/h - 60mm
Kefla fibres
1.5 to/h <40mm
Copper coils
0.5 to/h <30mm
PP fibres
1.5 to/h <30mm
Nylon 6 fibres
1.5 to/h <40mm
Nylon stockings
1.2 to/h <30mm
Nylon fibres
1.5 to/h <30mm
Security belts
1 to/h <40mm
Thermoformes
1.5to/h <8mm
Colour kettle
1.5 to/h <80mm
Industrial waste
5,0 to/h <60mm
Repa paper bags
5,0 to/h <40mm
Packaging tapes
1.2 to/h <40mm
Household waste
7,0 to/h <60mm
